Basic Specifications
|
E-JING TOP Edition
|
E-Dong Edition
|
|
Colour
|
White Blue
|
White Blue
|
|
Body Structure
|
5 doors 5 seats SUV
|
5 doors 5 seats SUV
|
|
Length / Width / Height (mm)
|
4390 x 1790 x 1560mm
|
4390 x 1790 x 1560mm
|
|
Weight(kg)
|
1647
|
1647
|
|
Wheelbase (mm)
|
2610mm
|
2610mm
|
|
Performance Specifications
|
||
|
Fuel Type
|
Pure electric
|
Pure electric
|
|
Dual Motor
|
NO
|
NO
|
|
Motor type
|
Permanent magnet synchronization
|
Permanent magnet synchronization
|
|
Motor Power
|
150kW NO 204PS
|
150kW NO 204PS
|
|
Maximum Torque
|
310N·m
|
310N·m
|
|
Top Speed
|
150kmNOh
|
150kmNOh
|
|
Battery Type
|
Ternary lithium battery
|
Ternary lithium battery
|
|
Battery Capacity
|
68.8kWh
|
68.8kWh
|
|
Energy consumption
|
13.8kWNOh NO 100km
|
13.8kWNOh NO 100km
|
|
NEDC Range
|
510km
|
510kmkm
|
|
Transmission
|
SingleNOspeed transmission for electric vehicles
|
SingleNOspeed transmission for electric vehicles
|
|
Drivetrain Type
|
FWD
|
FWD
|
|
Front Suspension Type
|
Independent MacPherson Suspension
|
Independent MacPherson Suspension
|
|
Rear Suspension Type
|
Torsion Beam Dependent Suspension
|
Torsion Beam Dependent Suspension
|
|
Brake System
|
||
|
Front Brake Type
|
Ventilated Disc
|
Ventilated Disc
|
|
Rear Brake Type
|
disc
|
disc
|
|
Parking Brake System
|
EPB
|
EPB
|
|
Front Tire Specifications
|
225NO50 R18
|
225NO50 R18
|
|
Rear Tire Specifications
|
225NO50 R18
|
225NO50 R18
|
|
Safety and Security Features
|
||
|
front airbag
|
Y
|
Y
|
|
Side airbags (front)
|
Y
|
Y
|
|
Side airbags (rear)
|
NO
|
NO
|
|
head protection air curtain
|
Y
|
Y
|
|
Tire pressure monitoring system
|
Y
|
Y
|
|
Belt loose alarm (front row)
|
Y
|
Y
|
|
Seat Belt Unfastened Alarm (Rear Passengers)
|
Y
|
Y
|
|
Child safety seat ISOFIX interface
|
Y
|
Y
|
|
AntiNOlock Braking System (ABS)
|
Y
|
Y
|
|
Electric brake force distribution (EBD/CBC, etc.)
|
Y
|
Y
|
|
Electronic Brake Assist (EBA/BAS/BA, etc.)
|
Y
|
Y
|
|
Traction control system (ASR/TCS/TRC, etc.)
|
Y
|
Y
|
|
Body Stability Control (ESC/ESP/DSC, etc.)
|
Y
|
Y
|
|
Lane Departure Warning System
|
Y
|
Y
|
|
automatic emergency braking
|
NO
|
NO
|
|
Driver fatigue detection system
|
NO
|
NO
|
|
Parallel Auxiliary
|
Y
|
Y
|
|
Lane Keeping Assist
|
Y
|
Y
|
|
road traffic sign recognition
|
Y
|
Y
|
|
Active Braking/Active Safety System
|
Y
|
Y
|
|
Forward Collision Warning
|
Y
|
Y
|
|
Driver Assist Features
|
||
|
Lane Keeping Assist
|
Y
|
Y
|
|
cruise
|
Y
|
Y
|
|
Reversing radar
|
Y
|
Y
|
|
parking camera system
|
360 Camera
|
Back Camera
|
|
hill assist system
|
Y
|
Y
|
|
automatic parking
|
Y
|
NO
|
|
Variable suspension function
|
NO
|
NO
|
|
Reversing side warning system
|
Y
|
Y
|
|
cruise system：
full speed adaptive cruise |
Y
|
Y
|
|
Assisted driving system
|
HONDA SENSING
|
HONDA SENSING
|
|
Assisted driving registration
|
L2
|
L2
|
|
External Configuration
|
||
|
Electric panoramic sunroof
|
Y
|
Y
|
|
keyless entry
|
Y
|
Y
|
|
keyless start
|
Y
|
Y
|
|
roof rack
|
NO
|
NO
|
|

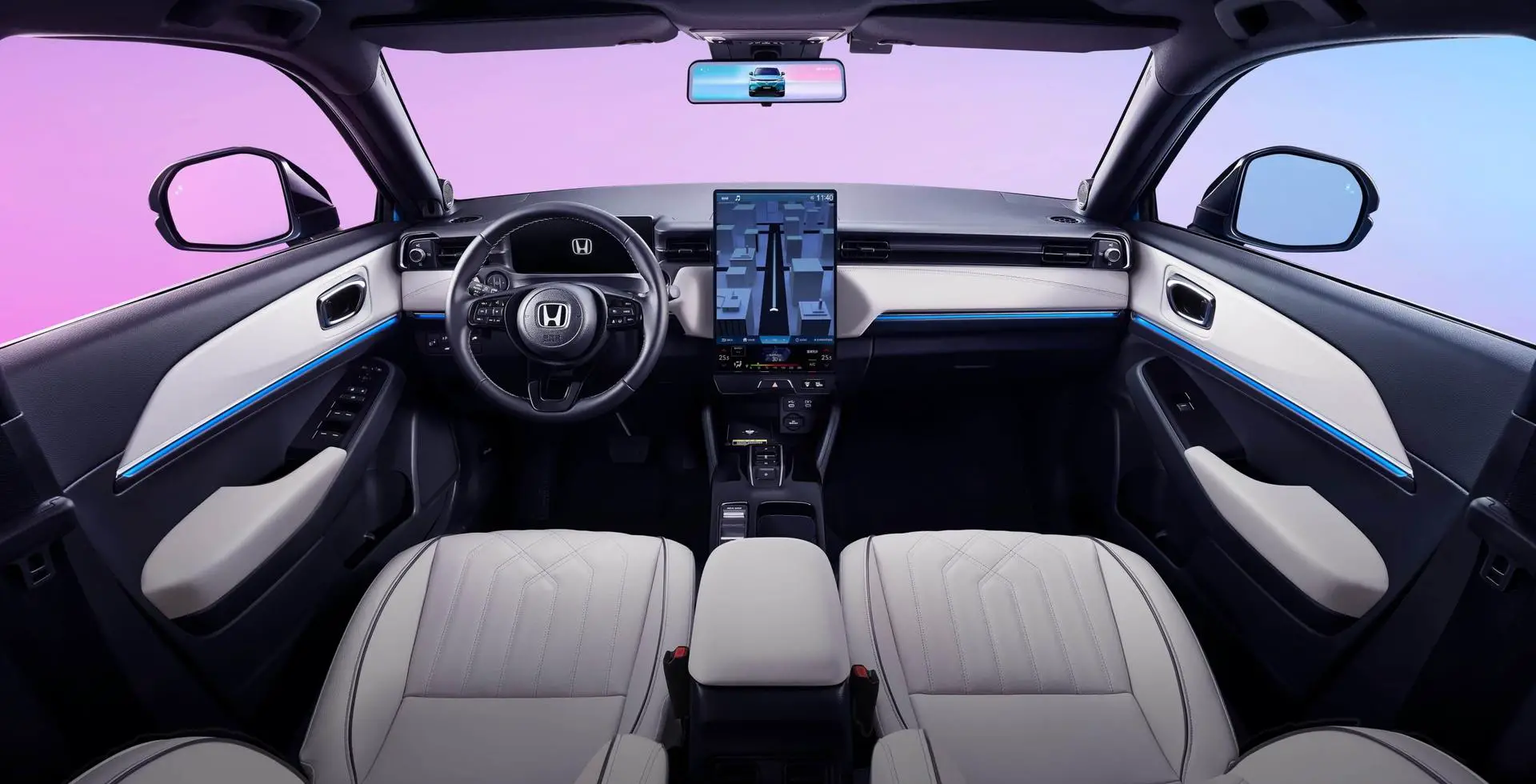

Internal Configuration
|
||
|
Steering wheel material
|
Plastic
|
Plastic
|
|
Multifunction steering wheel
|
Y
|
Y
|
|
Steering wheel adjustment
|
Manual adjustment (Up and down + front and back)
|
Manual adjustment (Up and down + front and back)
|
|
LCD Dashboard
|
10.25NOinch
|
10.25NOinch
|
|
Wireless Phone Charger Pad
|
NO
|
NO
|
|
ETC Device
|
Y
|
Y
|
|
Exterior Tachograph
|
Y
|
NO
|
|
Seats
|
||
|
seat material
|
leather
|
leather
|
